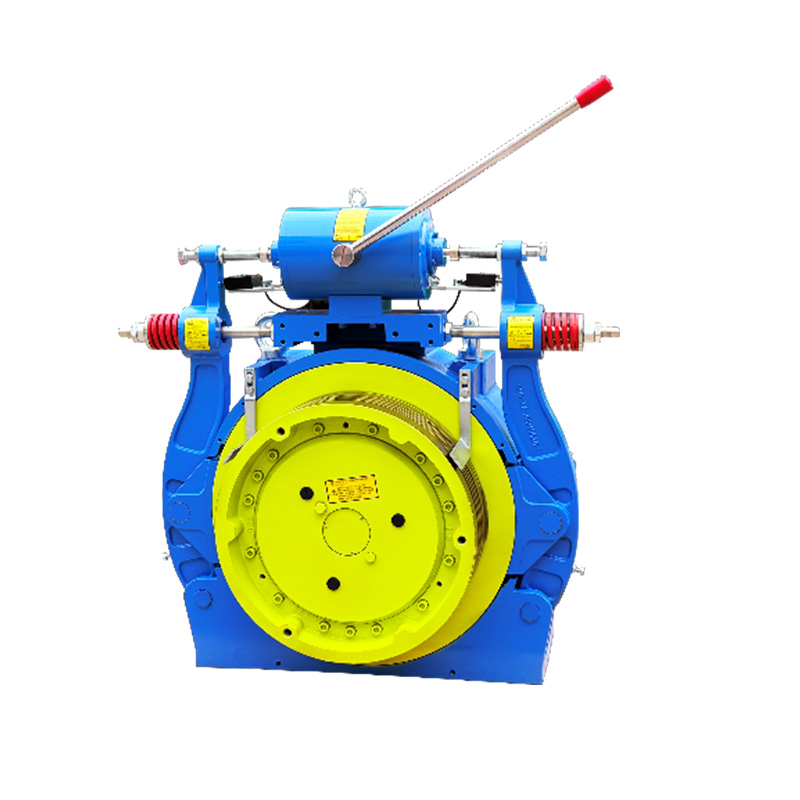

WTY1/SWTY1 (480mm Sheave) SERIES MACHINES
| Capacity | 800 kg-2000 kg |
| Roping | 2:1|1:1 |
| Undercut | U |
| Flatness ng Foot Pad | <0.5mm |
| Rating ng Proteksyon | IP40 |
| Insulation Class | F |
| Mga poste | 32 |
| Duty Cycle | S5-40% |
| Motor Rated Boltahe | AC380V |
| Preno | Tambol |
| Pagpili/Paghawak ng Boltahe | AC110V/DC110V |
Full-wave rectification power source para sa DC brake
WTY1 at SWTY1(480mm SHEAVE) SERIES -SINGLE WRAP (EXTERNAL ROTOR)
| Modelo | Kapasidad kg |
Bilis ng Elevator MS |
Rated Output kW |
Na-rate ang kasalukuyang A |
Na-rate na bilis rpm |
Dalas Hz |
Diameter ng sheave mm |
Torque Nm |
Ropes | Groove Dist mm |
Putulin anggulo |
Anggulo ng uka | Roping | Pag-load ng baras kg |
Panghawakan gulong | Remote Release |
Inertia kg m^2 |
Timbang kg |
| SWTY1-800-100(480) | 800 | 1.0 | 4.9 | 14.0 | 40 | 10.6 | 480 | 1171 | 7-f12 | 18 | β=95° | γ=30° | 1:1 | 5,500 | Y | Y | 11.50 | 660 |
| SWTY1-800-150(480) | 1.5 | 78 | 20.0 | 60 | 15.9 | 1254 | ||||||||||||
| SWTY1-800-160(480) | 1.6 | 8.4 | 20.0 | 64 | 17.0 | |||||||||||||
| SWTY1-800-175(480) | 1.75 | 9.1 | 20.0 | 70 | 18.6 | |||||||||||||
| SWTY1-800-200(480) | 2.0 | 10.5 | 25.0 | 80 | 21.2 | |||||||||||||
| SWTY1-800-250(480) | 2.5 | 13.1 | 30.0 | 99 | 26.5 | |||||||||||||
| SWTY1-1000-100(480) | 1000 | 1.0 | 6.5 | 17.0 | 40 | 10.6 | 480 | 1568 | 7-f12 | 18 | β=95° | γ=30° | 1:1 | 5,500 | Y | Y | 12.00 | 690 |
| SWTY1-1000-150(480) | 1.5 | 9.8 | 26.0 | 60 | 15.9 | |||||||||||||
| SWTY1-1000-160(480) | 1.6 | 10.5 | 26.0 | 64 | 17.0 | |||||||||||||
| SWTY1-1000-175(480) | 1.75 | 11.4 | 26.0 | 70 | 18.6 | |||||||||||||
| SWTYl-1000-200(480) | 2.0 | 13.1 | 29.0 | 80 | 21.2 | |||||||||||||
| SWTY1-1000-250(480) | 2.5 | 16.3 | 35.0 | 99 | 26.5 | |||||||||||||
| ★SWTY1-1150-100(480) | 1150 | 1.0 | 6.5 | 17.0 | 40 | 10.6 | 480 | 1570 | 7-f12 | 18 | β=95° | γ=30° | 1:1 | S,500 | Y | Y | 12.00 | 690 |
| ★SWTY1-1150-150(480) | 1.5 | 9.8 | 26.0 | 60 | 15.9 | |||||||||||||
| ★SWTY1-1150-160(480) | 1.6 | 10.5 | 26.0 | 64 | 17.0 | |||||||||||||
| ★SWTY1-1150-175(480) | 1.75 | 11.5 | 26.0 | 70 | 18.6 | |||||||||||||
| ★SWTY1-1150-200(480) | 2.0 | 13.1 | 29.0 | 80 | 21.2 | |||||||||||||
| ★SWTY1-1150-250(480) | 2.5 | 16.4 | 35.0 | 99 | 26.5 | |||||||||||||
| WTY1-1600-100(480) | 1600 | 1.0 | 10.6 | 25.0 | 80 | 21.2 | 480 | 1277 | 7-f12 | 18 | β=95° | γ=30° | 2:1 | 5,500 | Y | Y | 12.00 | 690 |
| WTY1-1600-150(480) | 1.5 | 16.0 | 40.0 | 119 | 31.8 | |||||||||||||
| WTY1-1600-160(480) | 1.6 | 17.0 | 40.0 | 127 | 34.0 | |||||||||||||
| WTY1-1600-175(480) | 1.75 | 18.6 | 40.0 | 139 | 37.1 | |||||||||||||
| WTY1-1600-200(480) | 2.0 | 21.3 | 45.0 | 159 | 42.4 | |||||||||||||
| WTY1-2000-100(480) | 2000 | 1.0 | 13.3 | 310 | 80 | 21.2 | 480 | 1596 | 7-f12 | 18 | β=95° | γ=30° | 2:1 | 5,500 | Y | Y | 12.00 | 690 |
| WTY1-2000-150(480) | 1.5 | 20.0 | 47.0 | 119 | 31.8 | |||||||||||||
| WTY1-2000-160(480) | 1.6 | 21.3 | 47.0 | l27 | 34.0 | |||||||||||||
| WTYI-2000-175(480) | 1.75 | 23.3 | 47.0 | 139 | 37.1 | |||||||||||||
| WTYl-2000-200(480) | 2.0 | 26.5 | 55.5 | 159 | 42.4 |
Notes:
1. Gamit ang markang "★", ang ratio ng balanse ay 0.48~0.5.
2. Ang preno ay AC110V at DC110V opsyonal, ang iba pang boltahe ng preno mangyaring kumonsulta sa mga inhinyero.
3. Ang AC brake ay nilagyan ng controller, ang step-down na transpormer ay hindi kinakailangan. Ang DC brake ay nangangailangan ng step-down na transpormer sa cabinet upang magarantiya ang hawak na boltahe ay 50% ng pagpili ng boltahe.
